RE13-SA03 SICK Safety switches RE1

Name: RE13SA03 SICK Safety switches RE1
Brand: SICK
Price: 10 USD

Wholesale RE13-SA03 SICK Safety switches RE1 from china suppliers

Brand Name : SICK

Model Number : RE13-SA03

Certification : CE.UKCA,ATEX,UL,etc

Place of Origin : Germany

MOQ : 1set

Price : $10-$1000

Payment Terms : TNT DHL FEDEX EMS UPS

Supply Ability : 100set/month

Delivery Time : 5-10 workday

Packaging Details : 100% original carton package

Application : Industrial Control

Product Type : Sensor

Package : Original Paper Box

Product Name : SICK Safety switches

Payment : Paypal\TTWestern Unionlali Trade Assurance

Model : RE13-SA03

Condition : 100% Original

Warranty : 1 Year

Contact Now

RE13-SA03 SICK Safety switches RE1

Product Description:

RE13-SA03 SICK Safety switches RE1

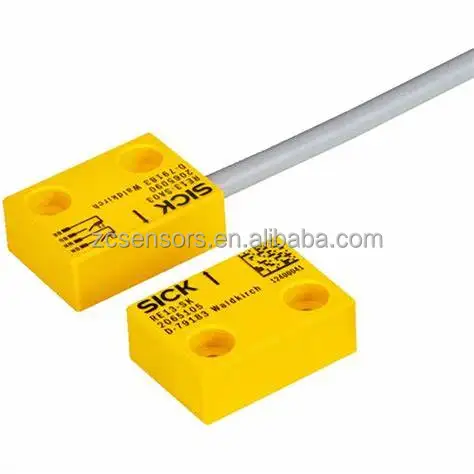

Small magnetic safety switch for non-contact door monitoring

RE1 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are addressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them ideal for applications where precise guidance of the protective device is difficult.

Features:

Benefits

Long service life due to durable and low-maintenance design
Space-saving mounting due to compact housing design
Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)
High level of machine availability due to high tolerances for door misalignment
The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards
Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.

Features

Response range up to 7 mm
2 or 3 contacts
Up to performance level PL e (EN ISO 13849)
Sensors with plug connector or connected cable
Flexi Loop-compatible M12 plug connector (depending on variant)

System part	Sensor with actuator
Sensor principle	Magnetic
Number of N/O contacts	2
Number of N/C contacts	0
Number of signaling contacts	0
Safe switch on distance Sao	7 mm
Safe switch off distance Sar	20 mm
Active sensor surfaces	1
Actuation directions	3

Connection type	Cable
Length of cable	3 m
Cable diameter	5.8 mm
Conductor cross section	0.25 mm²
Bend radius (with fixed installation)	> 12 x cable diameter
Bend radius (with moving cable)	> 15 x cable diameter
Cable material	PVC
Conductor material	Copper
