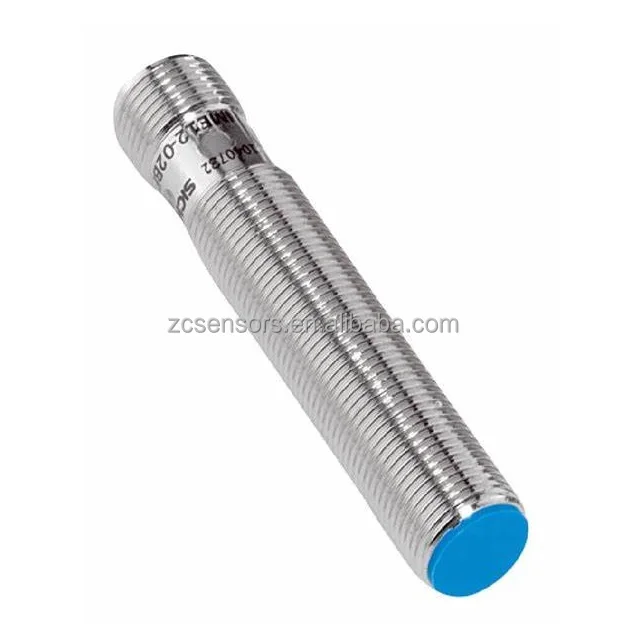

IME12-04BPOZC0S SICK Inductive proximity sensors IME

Name: IME1204BPOZC0S SICK Inductive proximity sensors IME
Brand: SICK
Price: 10 USD

Wholesale IME12-04BPOZC0S SICK Inductive proximity sensors IME from china suppliers

Brand Name : SICK

Model Number : IME12-04BPOZC0S

Certification : CE.UKCA,ATEX,UL,etc

Place of Origin : Germany

MOQ : 1set

Price : $10-$1000

Payment Terms : TNT DHL FEDEX EMS UPS

Supply Ability : 100set/month

Delivery Time : 5-10 workday

Packaging Details : 100% original carton package

Application : Industrial Control

Product Type : Sensor

Package : Original Paper Box

Product Name : SICK Inductive proximity sensors

Payment : Paypal\TTWestern Unionlali Trade Assurance

Model : IME12-04BPOZC0S

Condition : 100% Original

Warranty : 1 Year

Contact Now

IME12-04BPOZC0S SICK Inductive proximity sensors IME

Product Description:

IME12-04BPOZC0S SICK Inductive proximity sensors IME

The economic standard for use in industrial environments

SICK’s inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.

Features:

Benefits

High machine availability thanks to rugged design
Highly cost-efficient thanks to low purchase costs
Wide selection available thanks to extensive standard portfolio
High positioning accuracy thanks to precise switching behavior

Features

Types: M8 to M30
Extended sensing ranges: 1.5 mm to 38 mm
Electrical configuration: DC 3-/4-wire, DC 2-wire
Enclosure rating: IP67
Temperature range: –25 °C to +75 °C
Nickel-plated brass housing; plastic sensing face

Housing	Metric
Housing	Standard design
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	4 mm
Safe sensing range Sa	3.24 mm
Installation type	Flush
Switching frequency	2,000 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67 1)
Items supplied	Mounting nut, brass, nickel-plated (2x)

Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V 1)
Time delay before availability	≤ 100 ms
Hysteresis	5 % ... 15 %
Reproducibility	≤ 2 % 2) 3)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
No load current	≤ 10 mA
Shock and vibration resistance	30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature	–25 °C ... +75 °C
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	65 mm
Thread length	48 mm
Tightening torque, max.	≤ 12 Nm
UL File No.	NRKH.E181493
