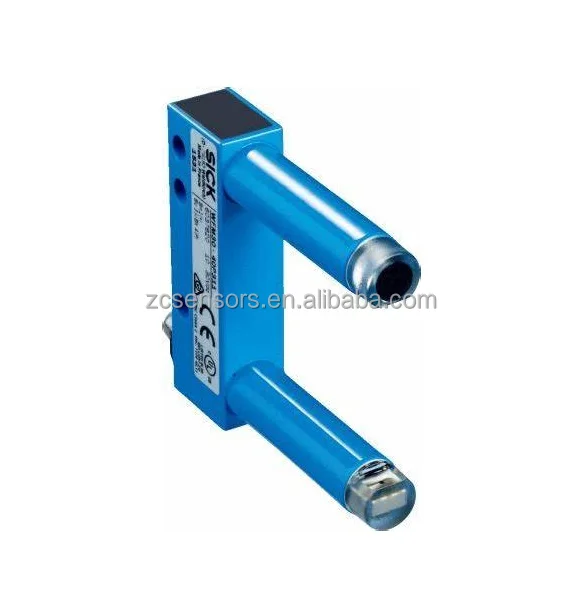

WFM30-40N311 SICK Fork sensors WFM

Product Categories

Xiamen ZhiCheng Automation Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

WFM30-40N311 SICK Fork sensors WFM

Name: WFM3040N311 SICK Fork sensors WFM
Brand: SICK
Price: 10 USD

Wholesale WFM30-40N311 SICK Fork sensors WFM from china suppliers

Brand Name : SICK

Model Number : WFM30-40N311

Certification : CE.UKCA,ATEX,UL,etc

Place of Origin : Germany

MOQ : 1set

Price : $10-$1000

Payment Terms : TNT DHL FEDEX EMS UPS

Supply Ability : 100set/month

Delivery Time : 5-10 workday

Packaging Details : 100% original carton package

Application : Industrial Control

Product Type : Sensor

Package : Original Paper Box

Product Name : SICK Fork sensors WFM

Payment : Paypal\TTWestern Unionlali Trade Assurance

Model : WFM30-40N311

Condition : 100% Original

Warranty : 1 Year

Contact Now

WFM30-40N311 SICK Fork sensors WFM

Product Description:

WFM30-40N311 SICK Fork sensors WFM

Plug-and-play fork sensors – connect and get started.

The WFM fork sensors are extremely quick and easy to mount and commission thanks to plug and play. Their yellow receive indicator can be seen all the way round, providing optimum feedback on the switching behavior of the WFM. Since the sender and receiver are integrated within the same housing, there is no need for any complex alignment work, allowing detection tasks to be prepared and completed quickly and easily. WFM have a rugged aluminum housing and are available in five different designs with fork widths ranging from 30 mm to 180 mm and fork depths of between 40 mm and 120 mm. SICK's fork sensors are suited to numerous applications, such as detecting parts in production processes, checking whether various objects are present, or intralogistic processes.

Features:

Benefits

Fixed parameters guarantee a high level of operational safety with extremely simple commissioning
A visible red light enables easy alignment of the WFM
The all-round visible receive indicator enables constant process control
A wide range of different fork sizes increases installation flexibility
Stable aluminum housing for use in harsh industrial environments

Features

Clearly visible red emitted light
No setup required: The sensor is ready for operation immediately
Receive indicator, visible all-round
5 fork sizes with a maximum depth of 120 mm and a maximum width of 180 mm
Stable aluminum housing with IP 67 enclosure rating

Functional principle	Optical detection principle
Dimensions (W x H x D)	10 mm x 50 mm x 59.5 mm
Fork width	30 mm
Fork depth	42 mm
Minimum detectable object (MDO)	0.8 mm
Adjustment	None

Current consumption	< 20 mA 1)
Stability of response time	± 15 µs
Switching output	PNP
Switching output (voltage)	PNP: HIGH = VS – ≤ 1.5 V / LOW = 0 V NPN: HIGH = approx. VS / LOW ≤ 1.5 V
Switching mode	Light switching
Output current Imax.	100 mA
Initialization time	140 ms
Connection type	Connector M8, 3-pin
Circuit protection	UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Weight	Approx. 80 g ... 190 g 2)
Housing material	Aluminum
